● ARM9 masana'antu CPU (iMX283), babban mitar 454MHz

● 128MB DDR2 tsarin ƙwaƙwalwar ajiya, mai amfani da free sarari game da 100MB

● 256MB Flash ƙwaƙwalwar ajiya, mai amfani da fayil sarari fiye da 160MB

● 1 hanyar USB babban tashar jirgin ruwa, goyon bayan U disk plug-and-play

● SD katin dubawa, goyon bayan SDHC Format ajiya (max 32GB)

● Real-lokaci agogo RTC tare da lokaci data kashewa kariya

● Hardware Watchdog (WDT), hana tsarin matattu kulle

● 6 hanyoyin misali UART serial tashar jiragen ruwa, inda mai amfani samuwa serial tashar jiragen ruwa 5 hanyoyin, Porter kudin iya isa

3Mbps

COM2 goyon bayan RTS / CTS kayan aiki sarrafawa

COM3 ne 3 waya serial tashar jirgin ruwa, RS232 matakin

COM4 - COM5 ne 3 waya serial tashar jirgin ruwa, TTL matakin

COM6 ne 3 waya serial tashar jirgin ruwa, TTL matakin, tare da GPIO Multiple tubu kafa

● Debugging jerin tashar jirgin ruwa Fixed sigogi: 115200bps, 8-N-1

Sauran sadarwa dubawa

Nuna Unit

● 1 hanyar Ethernet dubawa, 10M / 100M daidaitawa

● 1 hanyar USB babban gudun sarrafawa dubawa (HOST)

● 1 hanyar USB OTG dubawa, goyon bayan Microsoft ta ActiveSync yarjejeniyar sadarwa

● 1 hanyar I2C dubawa, sarrafa yanayin, max bandwidth 400kbps, tare da GPIO

Multiple Tube ƙafa

● 1 hanyar SPI dubawa, babban nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in nau'in

Multiple tubu kafa tare da GPIO

● 2 hanyoyin PWM fitarwa, kowane fitarwa mita, rabo na sararin samaniya za a iya saita da kansa,

Multiple tubu kafa tare da GPIO

● Goyon bayan USB rumfa serial tashar jirgin ruwa aiki

● Goyon bayan USB waje 3G katin cibiyar sadarwa

● Tsoho saita don TFT launi LCD dubawa (RGB kowane 6-bit + aiki tare da agogo

siginar)

● Mai launi nuni, ƙuduri daga 480 × 272 zuwa 1024 × 768 iya daidaitawa

(Amfani da CN3)

● Goyon bayan 4 waya juriya taɓa allon

● Mai zaman kansa LCD nuni dubawa, misali 40 core FPC soket (0.5mm spacing)

Digital da kuma analog sa ido Unit

Power & Module inji sigogi

● 12bit Universal GPIO0 - GPIO11, shigarwa da fitarwa mai zaman kansa sarrafawa

● Goyon bayan real-lokaci sa ido kan motherboard yanayin zafin jiki, samar da wutar lantarki

● samar da wutar lantarki: + 5V ± 5%, matsakaicin aiki halin yanzu 130mA

● aiki zazzabi: -10 ℃ zuwa 60 ℃; Masana'antu Grade (-40 ℃ zuwa 80 ℃) Zaɓi

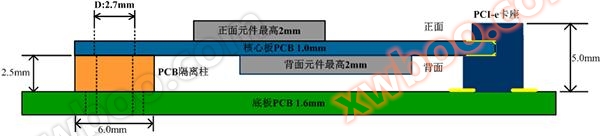

● Module siffar girma: 40mm × 50mm, allon zuwa allon tsayi: 5.5mm

● Standard 52 core miniPCIe dubawa, haɗi mai aminci, sauki cirewa

● Plugable inji halaye, tabbatar da high kulawa na kayayyakin

WinCE dandamali software muhalli

Yanayin software na dandamali na Linux

● Pre-shigar da WindowsCE 6.0 ainihin lokaci Multi-aiki tsarin aiki

● Bayar da daidai SDK ci gaban kunshin, ciki har da daban-daban dubawa direba API

● Goyon bayan VS2005 aikace-aikace haɗin haɗin yanayin ci gaba

● BinFS fayil tsarin, farawa lokaci rage zuwa 7 seconds matakin

● Goyon bayan Ethernet tashar jiragen ruwa (TCP / IP), USB tashar jiragen ruwa (ActiveSync) aikace-aikace

Shirin tushen bugging

● Goyon bayan aikace-aikacen cibiyar sadarwa na yau da kullun na telnet, FTP, Web da sauransu

● Goyon bayan ActiveSync hanyar fayil management da kuma Microsoft nesa debugging

Kayan aiki

● Bayar da tushen code na yau da kullun aikace-aikace

● Goyon bayan masu amfani canza kansu tashi farawa allon

● Pre-shigar da Linux-3.12.10 tsarin aiki, cikakken na'urar direbobi

● Fasahar farawa mai sauri ta UBIFS (goyon bayan Linux-3.9.x da sama kawai),

Farawa lokaci game da 8 seconds

● Ci gaban aikace-aikace kai tsaye a cikin yanayin haɗin gwiwar Eclipse tushen dandamali na Windows

Shirye-shiryen

● NFS tushen Windows dandamali, sa shirin debugging ne sosai sauki

● Goyon bayan Telnet, FTP da sauran al'ada tsarin debugging management hanyoyin

● Goyon bayan masu amfani canza kansu tashi farawa allon

● A hankali shirya aikace-aikace ci gaban gabatar da demo source code

● Typical aikace-aikace tsarin shirye-shirye tushe code for daban-daban aikace-aikace
